  • DINTEK Cat 6 FTP Solid Cable Without Braiding 305m

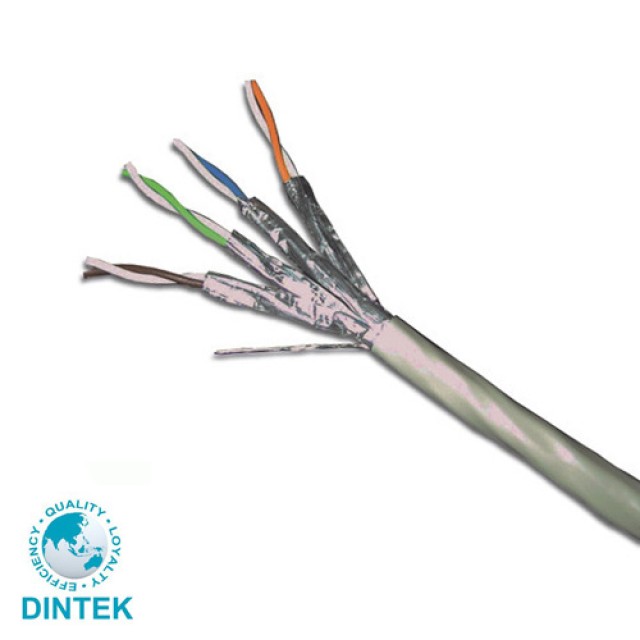

DINTEK Cat 6 FTP Solid Cable Without Braiding 305m

  • Brand: DINTEK
  • Model: 1107-04004
  • Location: Malaysia
  • Reward Points: 769
  • Availability: In Stock
  • RM 769.00

  • Redeem Points: 76900

  • 6 or more RM 881.02
  • 12 or more RM 863.39


Cat 6 4 Pair FTP Shielded 23AWG Solid Cable Without Braiding 305m(1,000ft)/box

Jacket : PVC
Color : Gray

Application:

  • Voice
  • Fast Ethernet(IEEE802.3)
  • 100Vg-AnyLAN(IEEE 802.12)
  • Token Ring(IEEE 802.5)
  • TP-PMD(ANSI X3T9.5)
  • 100Base-T Ethernet(IEEE 802.3u)
  • 155/622 Mbps 1.2/ 2.4 Gbps ATM
  • 1000Base-T Ethernet
  • 550 MHz Broadband video

Product Electrical Characteristics:

  • Impedance:100±15 ohms
  • Mutual Capacitance: nom. 13.6pf/ft
  • DC Resistance: max. 6.8ohm/100m at 20°C
  • Voltage rating: 30V
  • Rated temperature: 60°C

Industry Standard:

  • UL444 communication cables standard, UL AWM style 2835
  • TIA/EIA 568B.2-1

Cable Data:

  • No. of Pairs:4 pair
  • Size of conductor: 23AWG (solid anneal copper wire)
  • Overall Diameter:7.2±0.3mm
  • Individual Shielding: Aluminum-foil laminated tape.
  • Overall Shielding: Tinned copper wire braiding.
  • Jacket material: PVC or LSZH, flame retardant and/or
  • CM grade.
Order Processing
Lead Time 1~2 business days
